Build your first Dagster pipeline

Welcome to Dagster! In this guide, we'll cover:

  • Setting up a basic Dagster project using Dagster OSS for local development
  • Creating a single Dagster asset that encapsulates the entire Extract, Transform, and Load (ETL) process
  • Using Dagster's UI to monitor and execute your pipeline
  • Deploying your changes to the cloud
Dagster+ Serverless users

If you have created a project through the Dagster+ Serverless UI, see the Dagster+ Serverless quickstart guide instead.

Prerequisites​

Before getting started, you will need to make sure you install the following prerequisites:

  • Python 3.9+
  • If using uv as your package manager, you will need to install uv (Recommended).
  • If using pip as your package manager, you will need to install the create-dagster CLI with Homebrew, curl, or pip.

For detailed instructions, see the Installation guide.

Step 1: Scaffold a new Dagster project​

  1. Open your terminal and scaffold a new Dagster project:

    uvx create-dagster@latest project dagster-quickstart

  2. Respond y to the prompt to run uv sync after scaffolding

    Responding y to uv sync prompt

  3. Change to the dagster-quickstart directory:

    cd dagster-quickstart

  4. Activate the virtual environment:

    source .venv/bin/activate

  5. Install the required dependencies in the virtual environment:

    uv add pandas

Your new Dagster project should have the following structure:

.
└── dagster-quickstart
   ├── pyproject.toml
   ├── src
   │   └── dagster_quickstart
   │       ├── __init__.py
   │       ├── definitions.py
   │       └── defs
   │           └── __init__.py
   ├── tests
   │   └── __init__.py
   └── uv.lock

Step 2: Scaffold an assets file​

Use the dg scaffold defs command to generate an assets file on the command line:

dg scaffold defs dagster.asset assets.py

This will add a new file assets.py to the defs directory:

src
└── dagster_quickstart
   ├── __init__.py
   └── defs
      ├── __init__.py
      └── assets.py

Step 3: Add data​

Next, create a sample_data.csv file. This file will act as the data source for your Dagster pipeline:

mkdir src/dagster_quickstart/defs/data && touch src/dagster_quickstart/defs/data/sample_data.csv

In your preferred editor, copy the following data into this file:

src/dagster_quickstart/defs/data/sample_data.csv
id,name,age,city
1,Alice,28,New York
2,Bob,35,San Francisco
3,Charlie,42,Chicago
4,Diana,31,Los Angeles

Step 4: Define the asset​

To define the assets for the ETL pipeline, open src/dagster_quickstart/defs/assets.py file in your preferred editor and copy in the following code:

src/dagster_quickstart/defs/assets.py
import pandas as pd

import dagster as dg

sample_data_file = "src/dagster_quickstart/defs/data/sample_data.csv"
processed_data_file = "src/dagster_quickstart/defs/data/processed_data.csv"


@dg.asset
def processed_data():
    ## Read data from the CSV
    df = pd.read_csv(sample_data_file)

    ## Add an age_group column based on the value of age
    df["age_group"] = pd.cut(
        df["age"], bins=[0, 30, 40, 100], labels=["Young", "Middle", "Senior"]
    )

    ## Save processed data
    df.to_csv(processed_data_file, index=False)
    return "Data loaded successfully"

At this point, you can list the Dagster definitions in your project with dg list defs. You should see the asset you just created:

dg list defs
┏━━━━━━━━━┳━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━┓
┃ Section ┃ Definitions                                               ┃
┡━━━━━━━━━╇━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━┩
│ Assets  │ ┏━━━━━━━━━━━━━━━━┳━━━━━━━━━┳━━━━━━┳━━━━━━━┳━━━━━━━━━━━━━┓ │
│         │ ┃ Key            ┃ Group   ┃ Deps ┃ Kinds ┃ Description ┃ │
│         │ ┡━━━━━━━━━━━━━━━━╇━━━━━━━━━╇━━━━━━╇━━━━━━━╇━━━━━━━━━━━━━┩ │
│         │ │ processed_data │ default │      │       │             │ │
│         │ └────────────────┴─────────┴──────┴───────┴─────────────┘ │
└─────────┴───────────────────────────────────────────────────────────┘

You can also load and validate your Dagster definitions with dg check defs:

dg check defs
All component YAML validated successfully.
All definitions loaded successfully.

Step 5: Run your pipeline​

  1. In the terminal, navigate to your project's root directory and run:

    dg dev

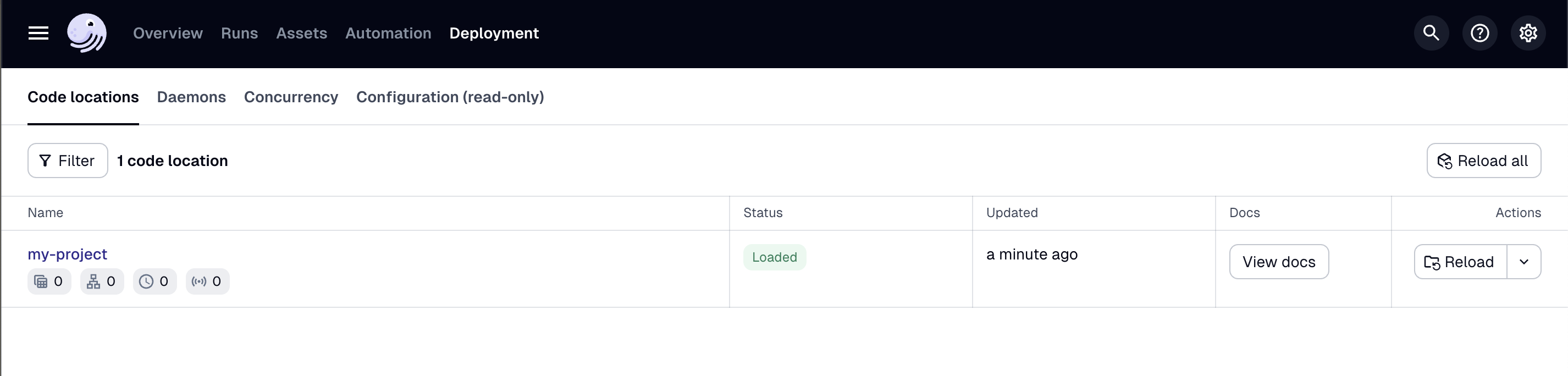

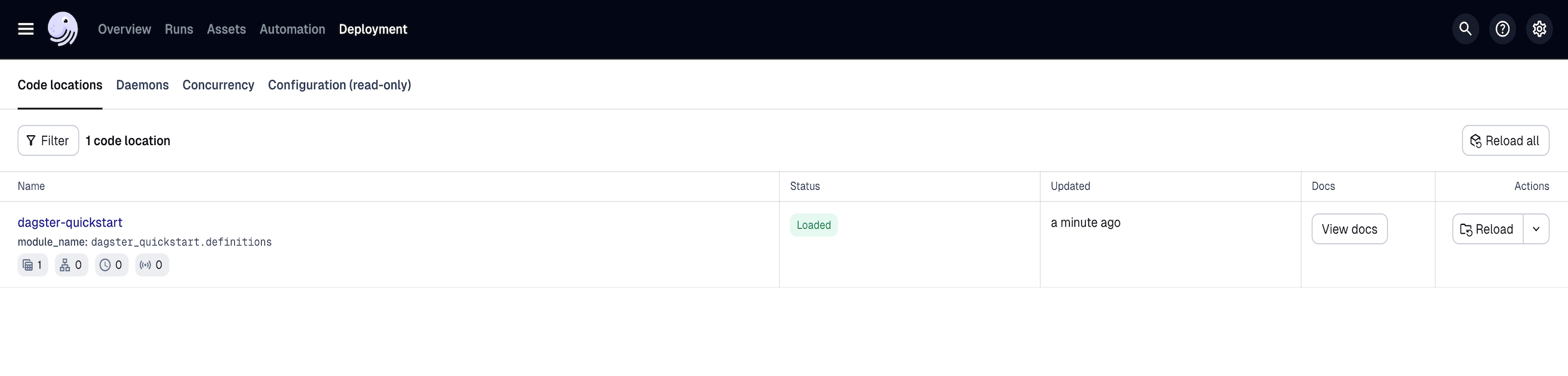

  2. Open your web browser and navigate to http://localhost:3000, where you should see the Dagster UI:

    Dagster UI overview

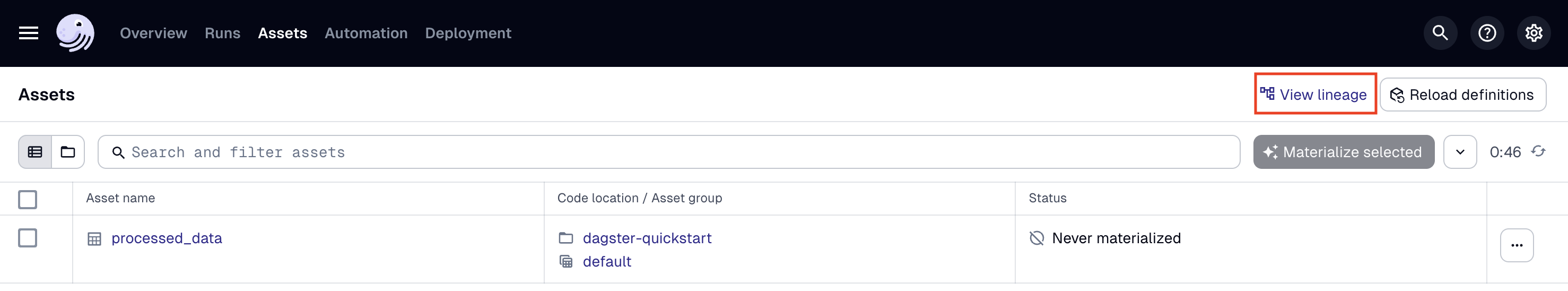

  3. In the top navigation, click the Assets tab, then click View lineage:

    Dagster UI asset lineage page

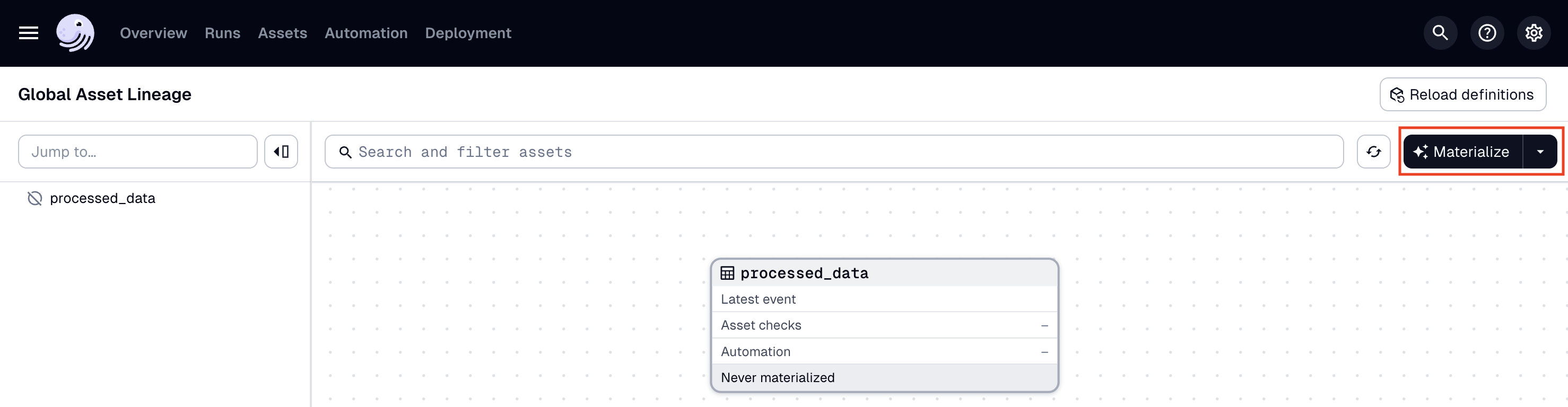

  4. To run the pipeline, click Materialize:

    Dagster asset lineage page with materialize button

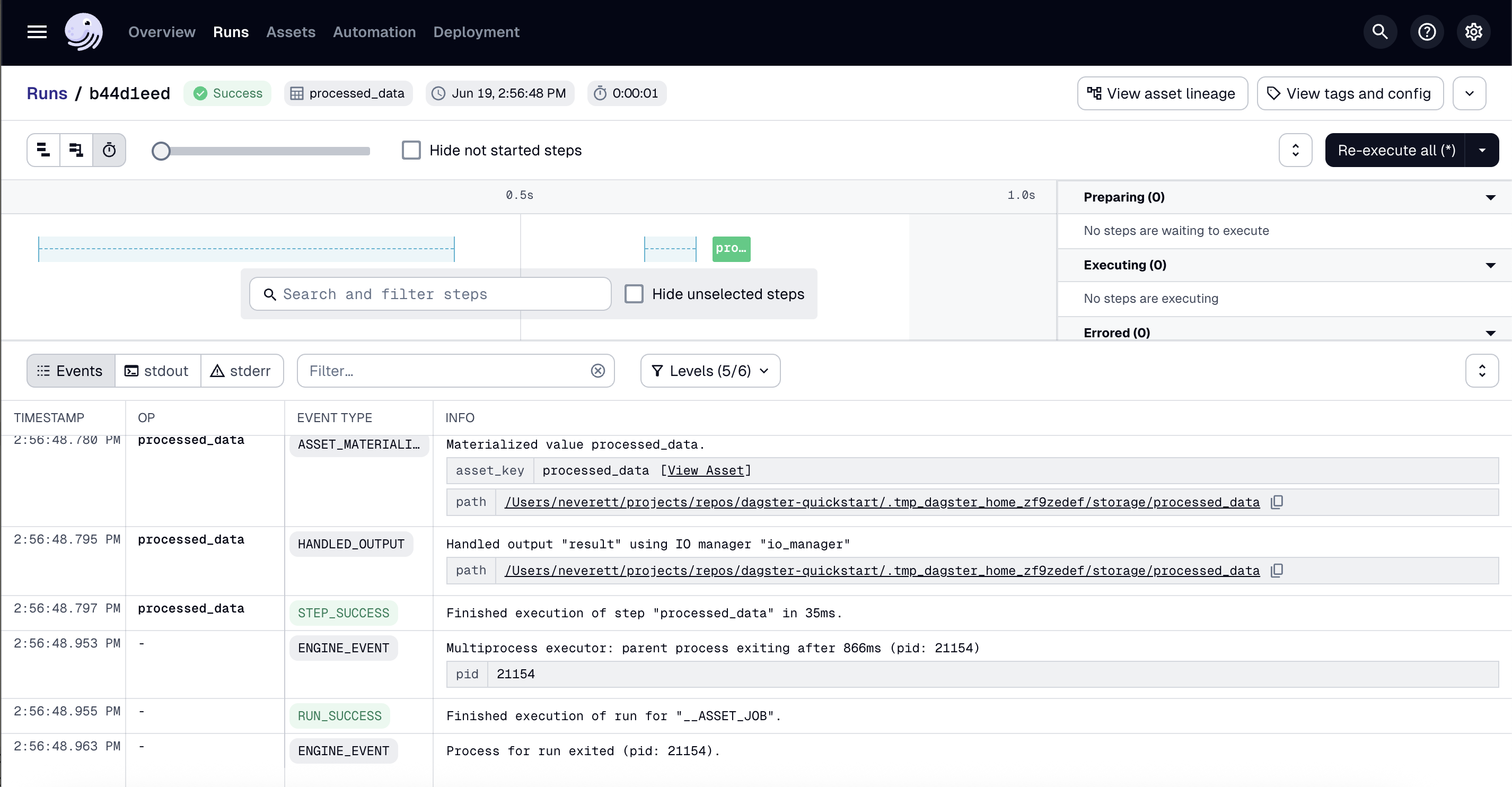

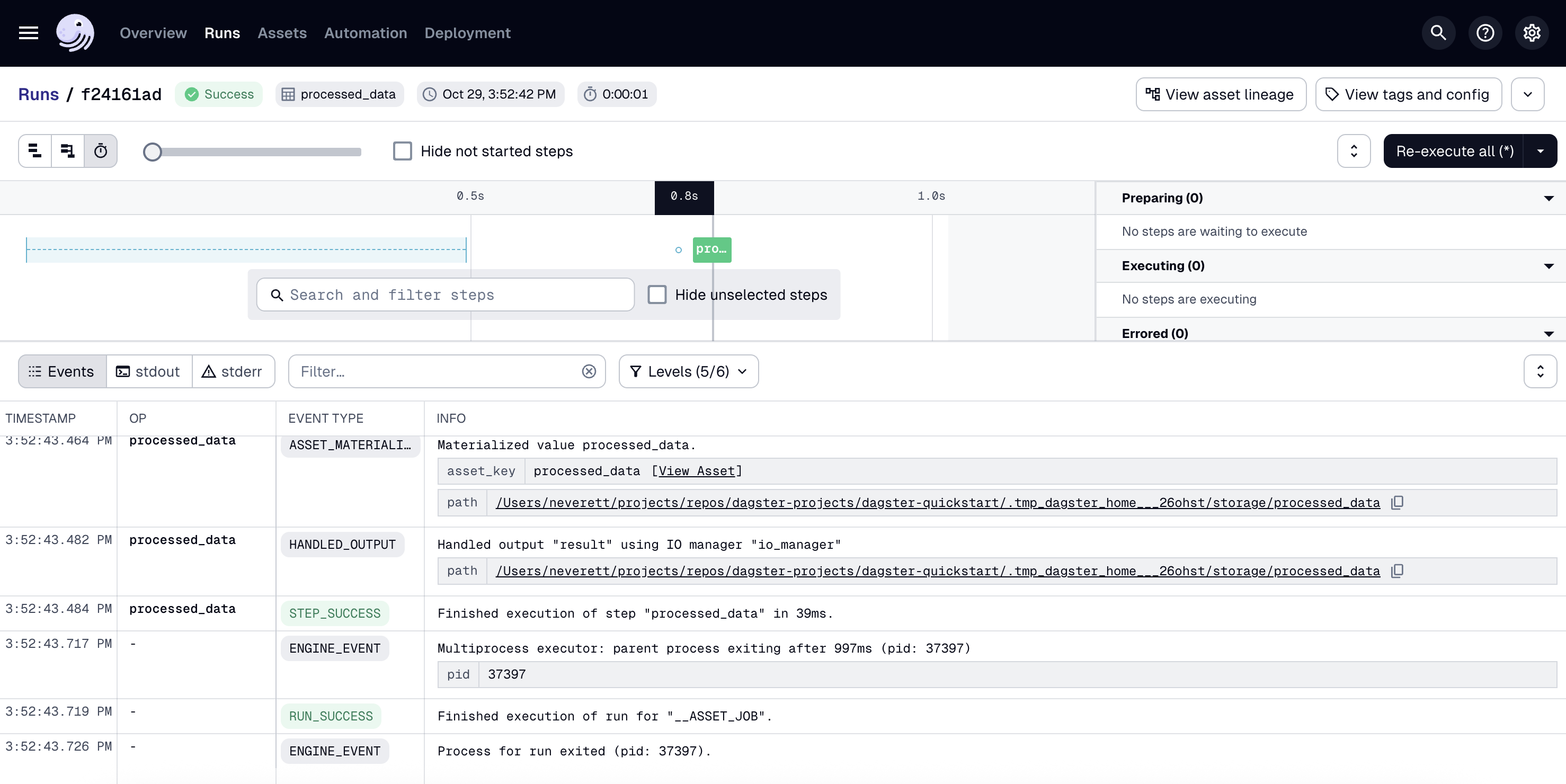

  5. To view the run as it executes, click the Runs tab, then on the right side of the page, click View:

    Dagster run view

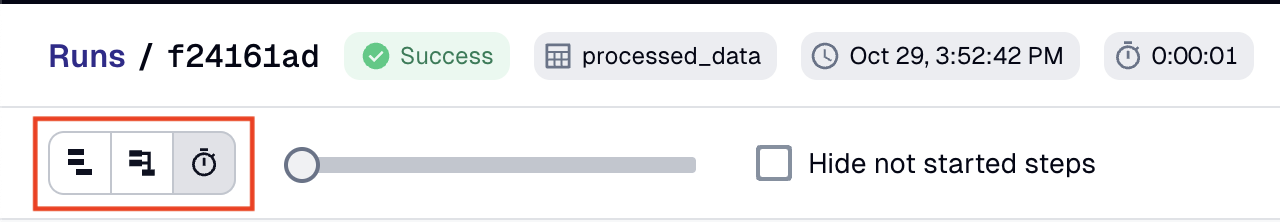

    To change how the run is displayed, you can use the view buttons in the top left corner of the page:

tip

You can also run the pipeline by using the dg launch --assets command and passing an asset selection:

dg launch --assets "*"

Step 6: Verify the results​

In your terminal, run:

cat src/dagster_quickstart/defs/data/processed_data.csv

You should see the transformed data, including the new age_group column:

id,name,age,city,age_group
1,Alice,28,New York,Young
2,Bob,35,San Francisco,Middle
3,Charlie,42,Chicago,Senior
4,Diana,31,Los Angeles,Middle

Step 7. Deploy to production​

Once you have run your pipeline locally, you can optionally deploy it to production.

To deploy to OSS production, see the OSS deployment docs. If you have already set up a production OSS deployment with an existing project, you will need to create a workspace.yaml file to tell your deployment where to find each project (also known as a code location).

Next steps​

Congratulations! You've just built and run your first pipeline with Dagster. Next, you can:
